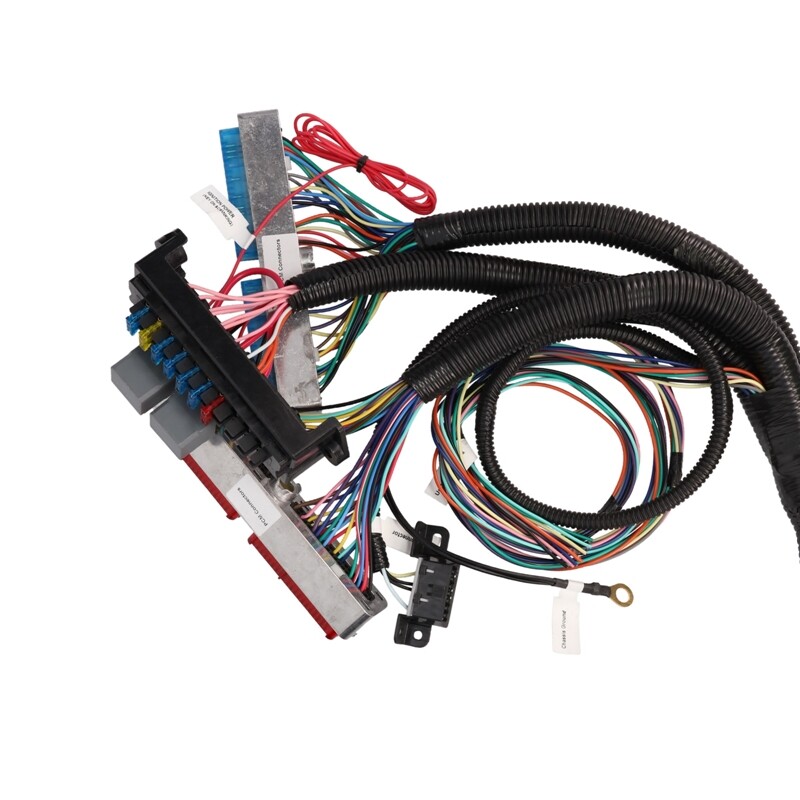

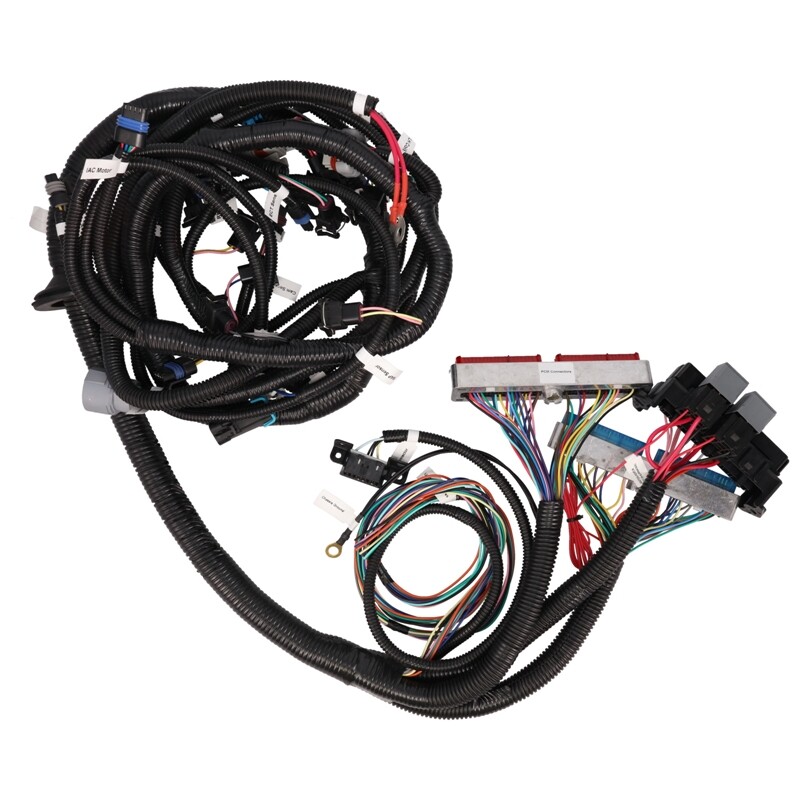

TSP WH1201 LS1/LS6 ECU Wiring Harness, Dive-by-Cable, 4L60E Transmission
Specifications
| Return Shipping Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Top Street Performance |
| SKU | TSPWH1201 |
| Manufacturer Part Number | WH1201 |
| Throttle Type | Drive-by-Cable |
| Injector Plug Style | EV1 |
| Metering Style | Mass airflow |
| Fuse Box Included | Yes |
| Relay Box Included | Yes |
| Fuel Pump Control Connector | Yes |
| Fan Controls Connector | Yes |
| Check Engine Light Connector | Yes |
| Speedometer Connector | Yes |
| Tachometer Connector | Yes |
| OBD2 Connector | Yes |
| IAC Connector | Yes |
| TPS Connector | Yes |
| MAF Sensor Connectors | Yes |
| MAP Sensor Connector | Yes |
| Engine Coolant Temp Sensor Connector | Yes |
| Alternator Control Conncetor | Yes |
| Upstream Oxygen Sensors Connectors | Yes |
| Crankfshaft Position Connector | Yes |
| Camshaft Position Connector | Yes |
| Fuel Injectors Connectors | Yes |
Description Fits LS1/LS6 (5.7L) Engines from Corvettes and Vortec (4.8L, 5.3L, 6.0L) GM trucksFits drive-by-cable applications with LS1 intake manifolds and 4L60E transmissions Top Street Performance WH1201 LS1/LS6 ECU Wiring Harness, Dive-By-Cabl An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That's where TSP's engine and transmission wiring harness comes in. It is designed for engines from '97 - '04 LS1 and LS6 Corvettes and '99-'06 drive-by-cable GM trucks with 4L60E transmissions. FOR USE WITH TSP PRODUCTS TSP adapter 81033 required in order to use GM 12592525 MAP sensor Will plug into TSP 81050 injectors with their included adapters Recommended and Compatible Parts Main Computer: GM 9354896, 12200411 MAP Sensor: GM 16212460, Delco 12614970 IAC Sensor: GM 1711391 Coolant Temp Sensor: GM 15326388, Delco 213-953 Ignition Coils: GM 12558948, TSP 81015-8 O2 Sensor: GM 25161131, Delco AFS123 TPS Sensor: GM 17123852, Delco 213-912 MAF Sensor: GM 25168491, Delco 213-364 CAM Sensor: GM 12561211, Delco 213-363 Crank Semsor: GM 12560228, Delco 213-354 Knock Sensor: GM 1046603 Specifications SpecificationThrottle TypeDrive-by-CableInjector Plug StyleEV1Metering StyleMass airflowFuse Box IncludedYesRelay Box includedYesFuel Pump Control connectorYesFan Controls connectorYesCheck Engine Light connectorYesSpeedometer connectorYesTachometer connectorYesOBD2 connectorYesIAC connectorYesTPS connectorYesAccelerator Pedal connectorNoMAF Sensor connectorsYesMAP Sensor connectorYesEngine Coolant Temp Sensor connectorYesAlternator Control conncetorYesUpstream Oxygen Sensors connectorsYesCrankfshaft Position connectorYesCamshaft Position connectorYesFuel Injectors connectorsYesCoil Pack connectorsYesThrottle Body Control connectorNoKnock Sensor connectorsYesQuantitySold individually.UniversalYesMakeChevroletEngine FamilyChevy small block Gen III/IV (LS-based engines)Engine sizes4.8L/294-6.0L/364Years1997-2006Tranmission Type4L60EItem #TSPWH1201Mfg Part #WH1201 Powered by
